Material :
Acetal (POM)Flow :
3/8 '' SizeSealing Ring :
NoColor :
White / Beige /greyValve Option :
No ValveClassification:
Color and Material | Product Name | Operation temperature | O-ring |

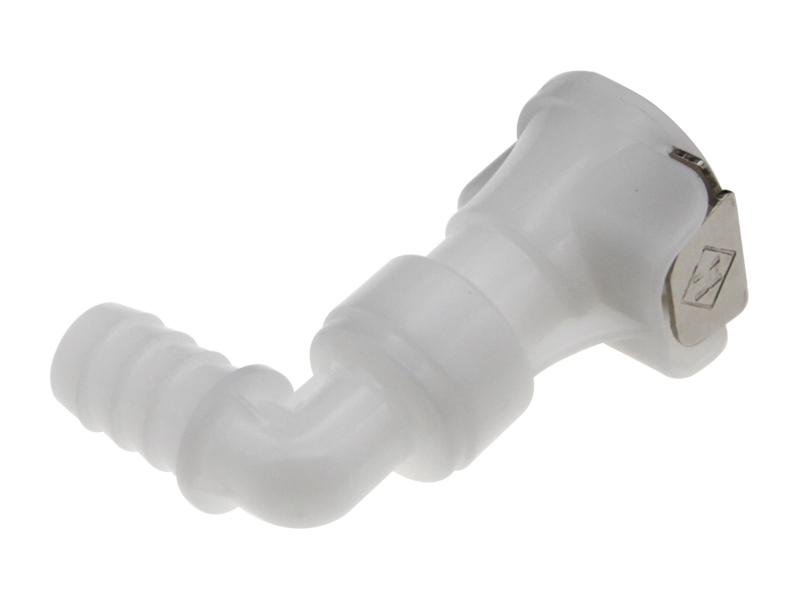

(White) Acetal | SACR4002ZW6 | - 40 ° F to 180° F | Buna-N (Nitrile rubber) |

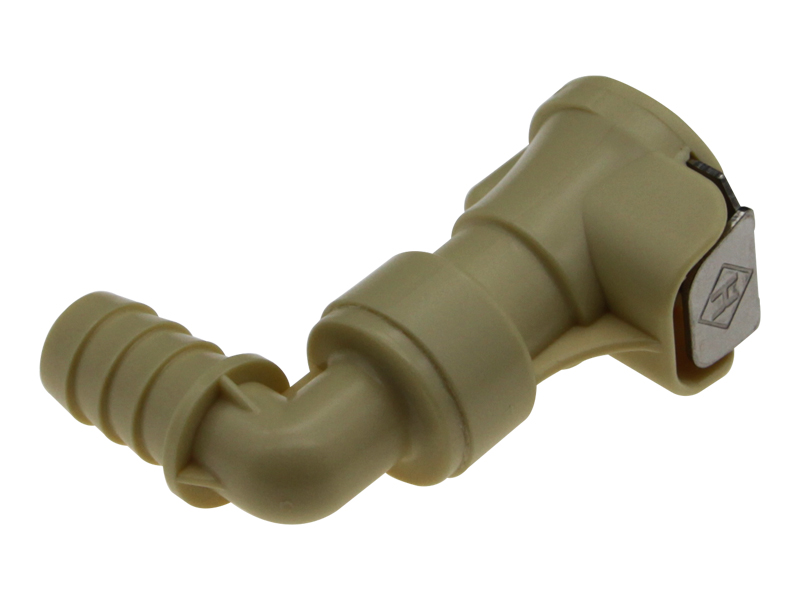

(Beige) Polypropylene | SPPR4002ZW6MALD | - 32 ° F to 160° F | Peroxide Cured EPDM |

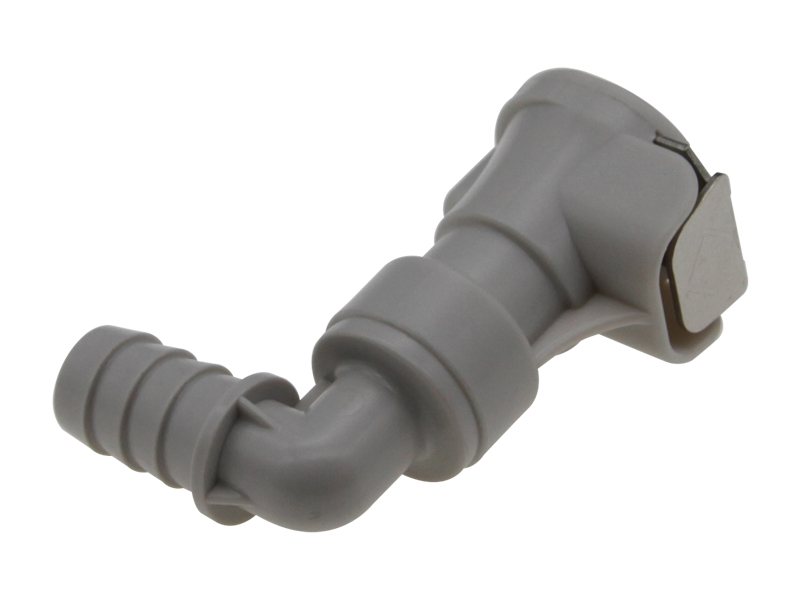

(Grey) Polypropylene | SPPR4002ZW6 | - 32 ° F to 160° F | Peroxide Cured EPDM |
(Metallochrome) Chrome brass / Stainless steel | / | / | / |
Panel Mount Dimensions:
Panel Opening | Max Panel Thickness | Min Panel Thickness | |
Sockets | See Drawing | 0.5" | 0.05" |
Plugs | 0.688" | 0.3" | 0.05" |
Product Number Guide Example:
S | AC | R | 400 | 2 | Z | W6 |
Socket / Plug |
Material |
No Valve |
Flow size |
Body shape |
No O-ring |
Connection size |
