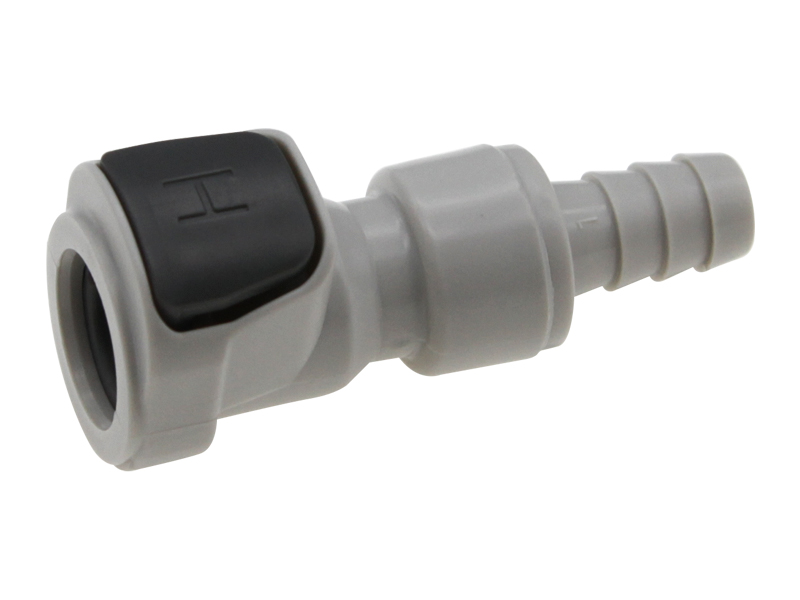

Quick Couplings Series (No Valve)

SACR5002ZL5

  • Material :

    Acetal (POM)
  • Flow :

    5/16 '' Size
  • Sealing Ring :

    No
  • Color :

    White / Beige / grey
  • Valve Option :

    No Valve
This series of products refers to the lock button material being acetal. At a working pressure of 8.3 bar, it has fewer leakage points, shorter assembly time, faster installation, can prevent accidental disconnection, and no external metal leakage.

Classification:



Color and Material Product Name Operation temperature O-ring
  (White) Acetal  SACR5002ZL5 - 40 ° F to 180° F Buna-N (Nitrile rubber)

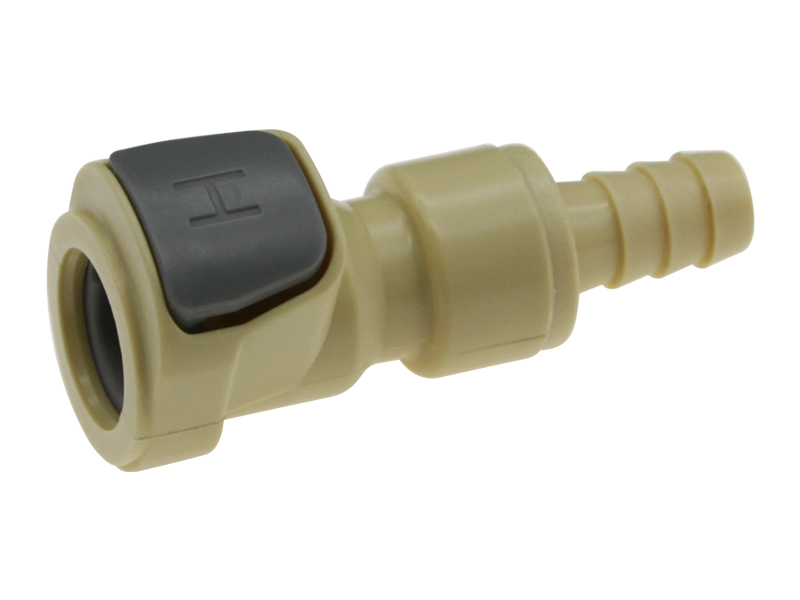

  (Beige) Polypropylene  SPPR5002Z05MALD - 32 ° F to 160° F Peroxide Cured EPDM
  (Grey) Polypropylene  SPPR5002Z05
- 32 ° F to 160° F
Peroxide Cured EPDM

Panel Mount Dimensions:



  Panel Opening  Max Panel Thickness Min Panel Thickness
Sockets See Drawing 0.5" 0.05"
Plugs 0.688" 0.3" 0.05"

Product Number Guide Example:



S AC R 500 2 Z L5

Socket / Plug

Material

No Valve

 Flow size

Body shape

No O-ring

Connection size
