Quick Couplings Series (No Valve)

SACR2001Z02

  • Material :

    Acetal (POM)
  • Flow :

    1/8 '' Size
  • Sealing Ring :

    No
  • Color :

    White / Beige /grey / metallochrome
  • Valve Option :

    No Valve
The material of the finger lock button in this series of products is stainless steel. At a working pressure of 8.3 bar, it has few leakage points, short assembly time, fast installation, reliable connection, and can be interchanged with the 200CB series.

Classification:



Color and Material Product Name Operation temperature O-ring
  (White) Acetal  SACR2001Z02 - 40 ° F to 180° F Buna-N (Nitrile rubber)

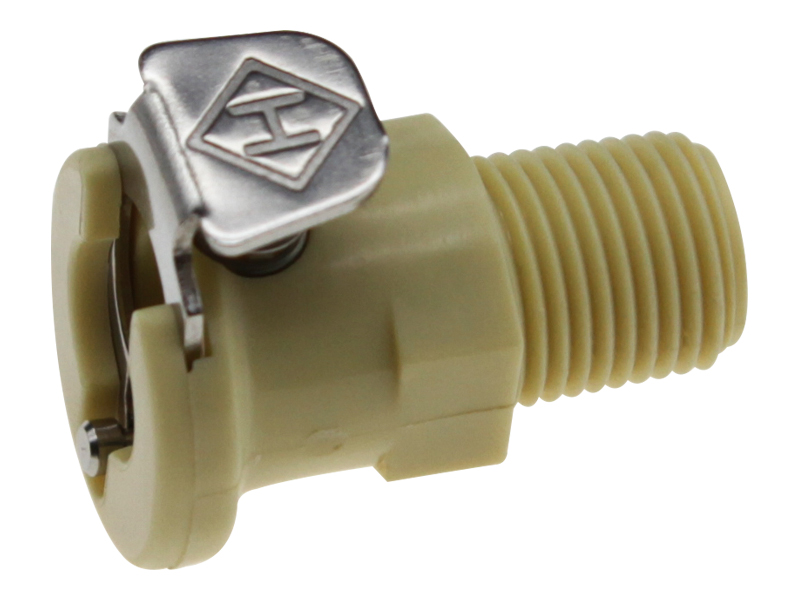

  (Beige) Polypropylene  SPPR2001Z02MALD - 32 ° F to 160° F Peroxide Cured EPDM

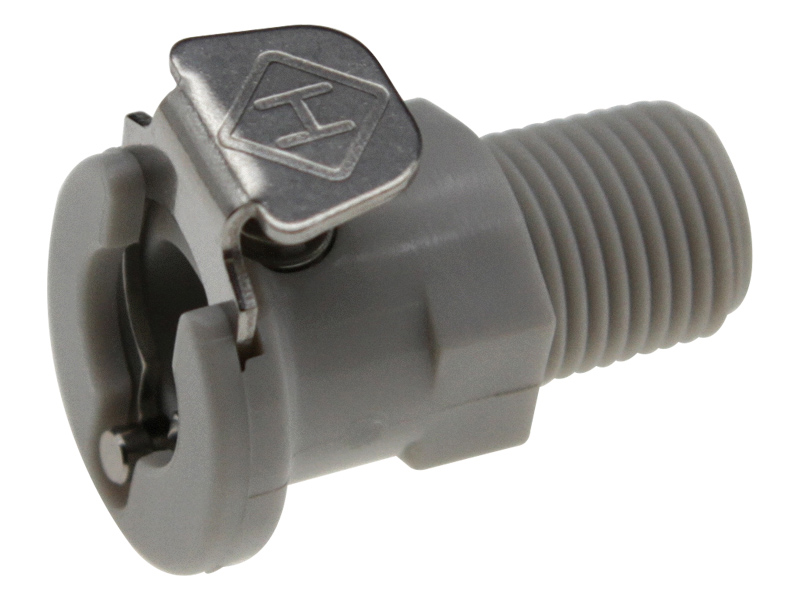

  (Grey) Polypropylene  SPPR2001Z02 - 32 ° F to 160° F Peroxide Cured EPDM

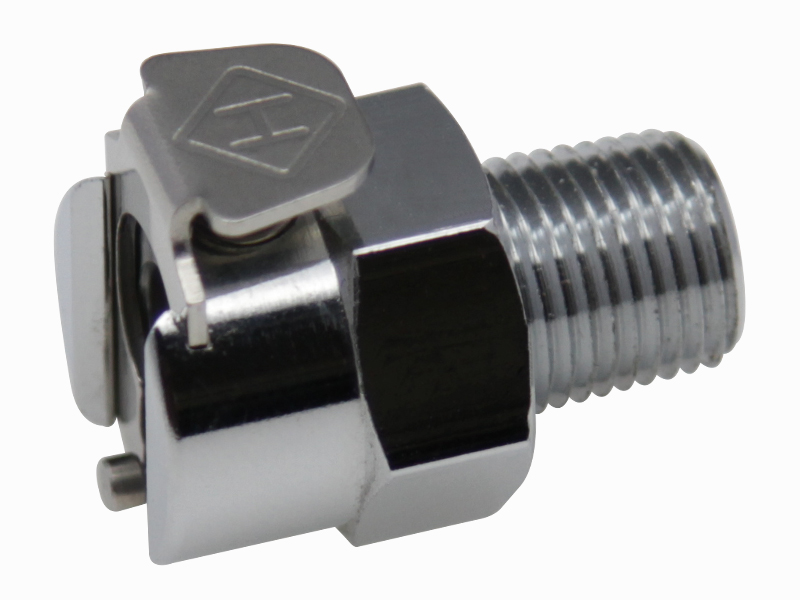

 (Metallochrome) Chrome brass / Stainless steel SCBR2001Z02 / SSSR2001Z02 - 40 ° F to 180° F Buna-N (Nitrile rubber)

Panel Mount Dimensions:



  Panel Opening  Max Panel Thickness Min Panel Thickness
Sockets See Drawing 0.5" 0.05"
Plugs 0.5" 0.3" 0.05"

Product Number Guide Example:



S AC R 200 1 Z 02

Socket / Plug

Material

No Valve

 Flow size

Body shape

No O-ring

Connection size
