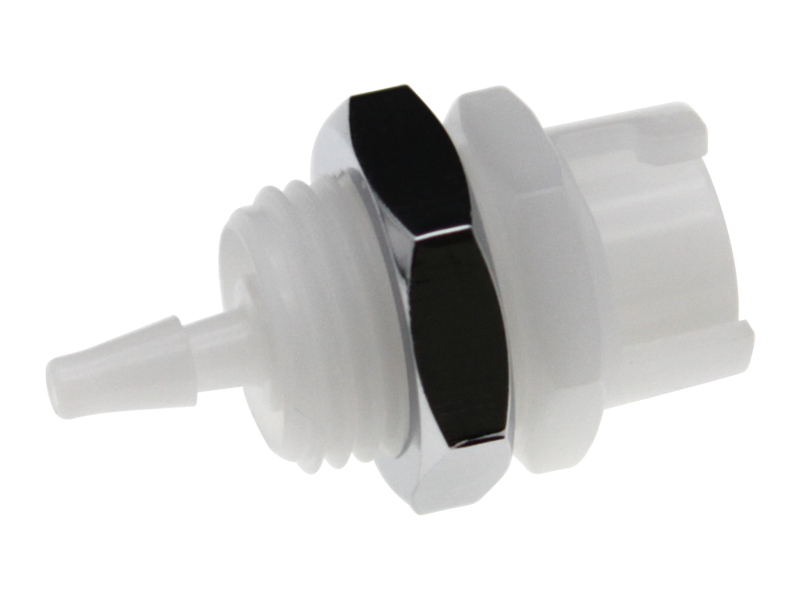

Quick Couplings Series (No Valve)

SACR1003ZM3

  • Material :

    Acetal (POM)
  • Flow :

    3.0mm ID
  • Sealing Ring :

    Buna-N (Nitrile rubber)
  • Color :

    White / Beige
  • Valve Option :

    No Valve
The material of the finger lock button in this series of products is acetal. The working pressure is 6.9 bar. It can prevent pipeline twisting, shorten assembly time, facilitate installation, rotate 1/4 to tighten, and prevent excessive torque.

Classification:



Color and Material Product Name Operation temperature O-ring
  (White) Acetal  SACR1003ZM3 - 40 ° F to 180° F Buna-N (Nitrile rubber)
  (Beige) Polypropylene  / - 32 ° F to 160° F Peroxide Cured EPDM

Panel Mount Dimensions:



  Panel Opening  Max Panel Thickness Min Panel Thickness
Sockets .438" .21" 0.03"
Plugs .438" .21" 0.03"

Product Number Guide Example:



S AC R 100 3 Z M3

Socket / Plug

Material

No Valve

 Flow size

Body shape

No O-ring

Connection size
