Material :
Acetal (POM)Flow :
1/4 '' SizeSealing Ring :
Buna-N (Nitrile rubber)Color :
White / Beige /greyValve Option :
No ValveClassification:
Color and Material | Product Name | Operation temperature | O-ring |

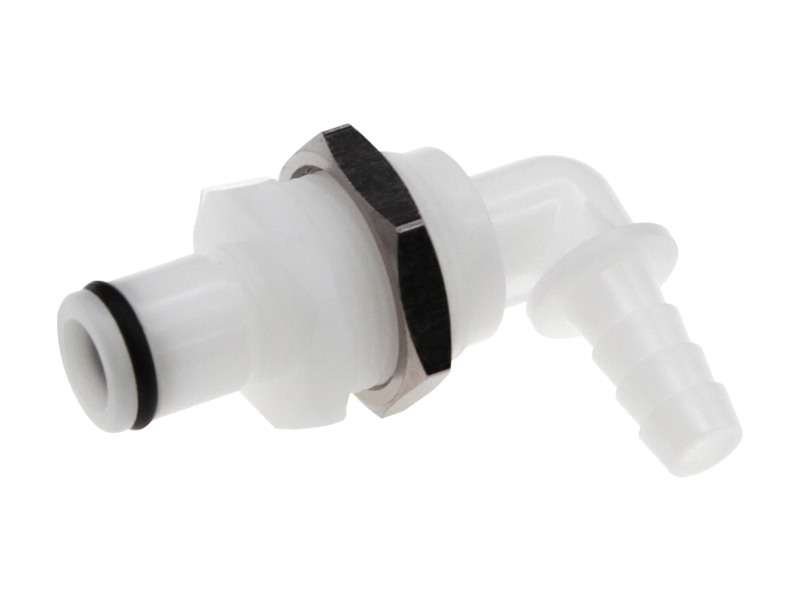

(White) Acetal | PACR4003BW4 | - 40 ° F to 180° F | Buna-N (Nitrile rubber) |

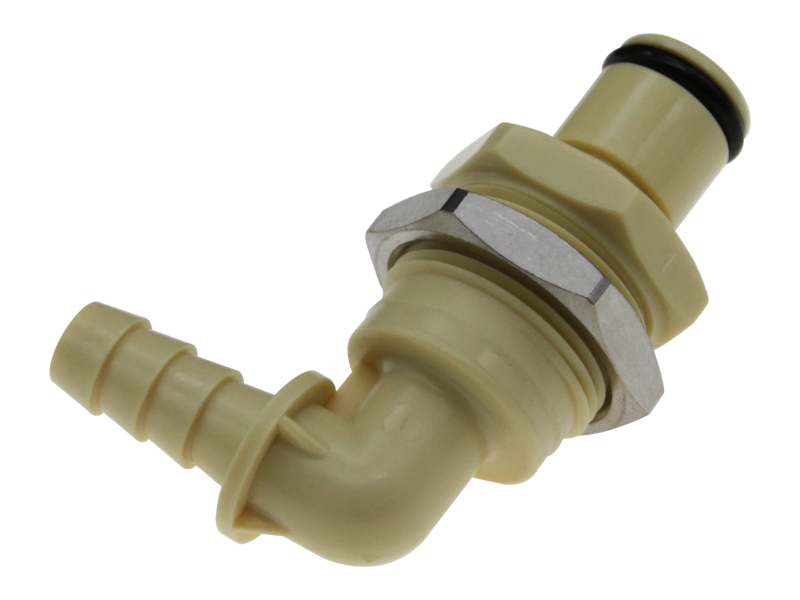

(Beige) Polypropylene | PPPR4003EW4MALD | - 32 ° F to 160° F | Peroxide Cured EPDM |

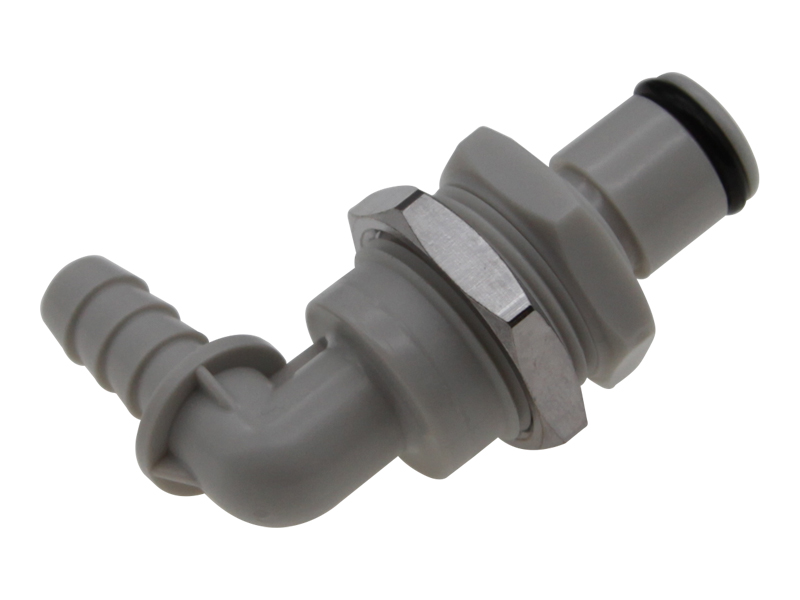

(Grey) Polypropylene | PPPR4003EW4 | - 32 ° F to 160° F | Peroxide Cured EPDM |
(Metallochrome) Chrome brass / Stainless steel | / | / | / |
Panel Mount Dimensions:
Panel Opening | Max Panel Thickness | Min Panel Thickness | |
Sockets | See Drawing | 0.5" | 0.05" |
Plugs | 0.688" | 0.3" | 0.05" |
Product Number Guide Example:
P | AC | R | 400 | 3 | B | W4 |
Socket / Plug |
Material |
No Valve |
Flow size |
Body shape |
O-ring |
Connection size |
