Material :
Acetal (POM)Flow :
1/4" OD .17" ID SizeSealing Ring :
Buna-N (Nitrile rubber)Color :
White / Beige /grey / metallochromeValve Option :
ValveValve Spring :
316 Stainless SteelInternal Valve Material :
Acetal (POM)Classification:
Color and Material | Product Name | Operation temperature | O-ring |
(White) Acetal | SACV4008B04 | - 40 ° F to 180° F | Buna-N (Nitrile rubber) |

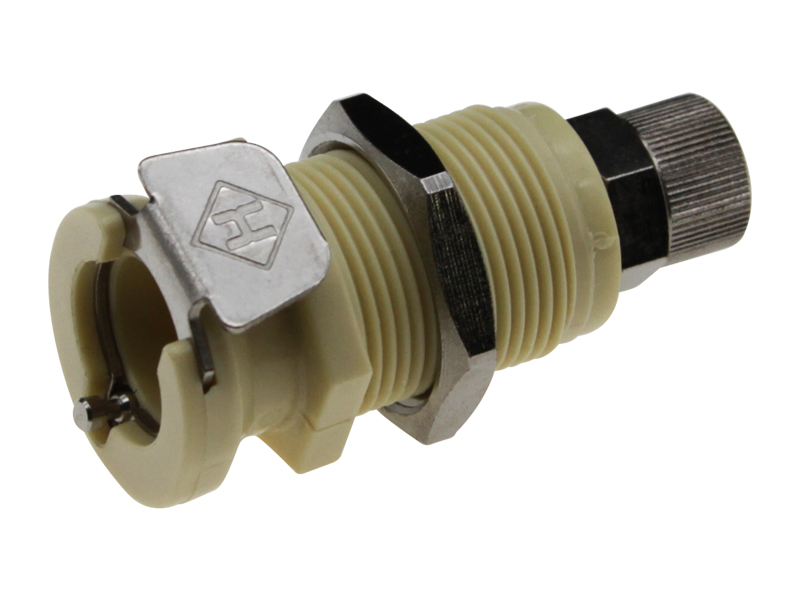

(Beige) Polypropylene | SPPV4008E04MALD | - 32 ° F to 160° F | Peroxide Cured EPDM |

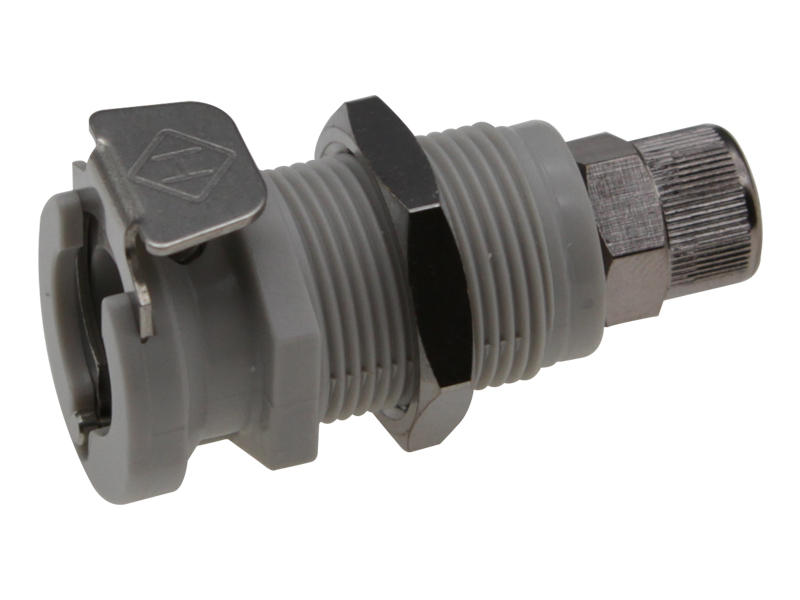

(Grey) Polypropylene | SPPV4008E04 | - 32 ° F to 160° F | Peroxide Cured EPDM |

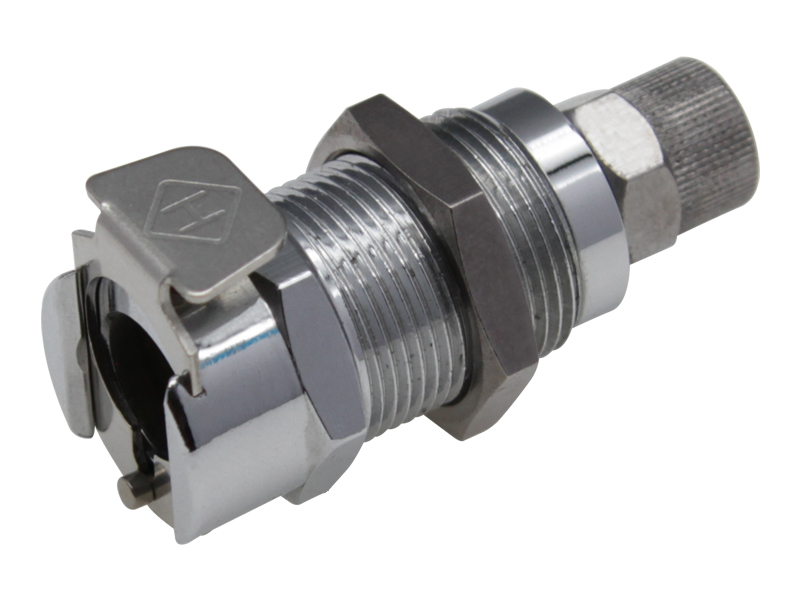

(Metallochrome) Chrome brass / Stainless steel | SCBV4008B04 / SSSV4008B04 | - 40 ° F to 180° F | Buna-N (Nitrile rubber) |
Panel Mount Dimensions:
Panel Opening | Max Panel Thickness | Min Panel Thickness | |
Sockets | See Drawing | 0.5" | 0.05" |
Plugs | 0.688" | 0.3" | 0.05" |
Product Number Guide Example:
S | AC | V | 400 | 8 | B | 04 |
Socket / Plug |
Material |
Valve |
Flow size |
Body shape |
O-ring |
Connection size |
