Quick Couplings Series (Valve)

SACV2002B01

  • Material :

    Acetal (POM)
  • Flow :

    1/16 '' Size
  • Sealing Ring :

    Buna-N (Nitrile rubber)

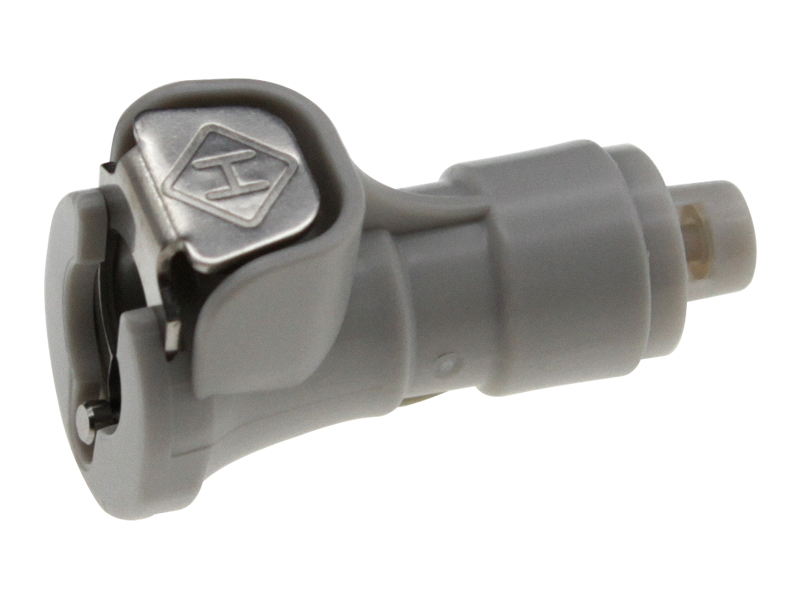

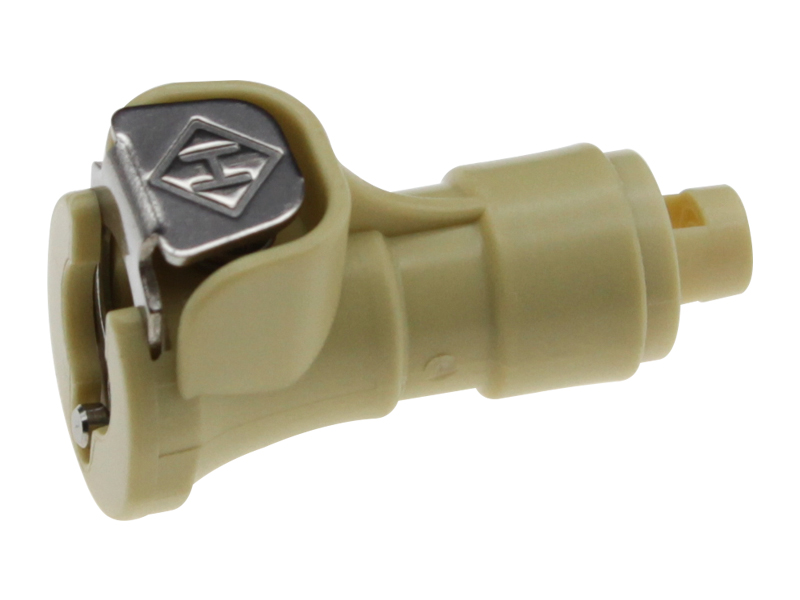

  • Color :

    White / Beige /grey
  • Valve Option :

    Valve
  • Valve Spring :

    316 Stainless Steel
  • Internal Valve Material :

    Acetal (POM)
The material of the finger lock button in this series of products is stainless steel. At a working pressure of 8.3 bar, it has few leakage points, short assembly time, fast installation, reliable connection, and can be interchanged with the 200CB series.

Classification:



Color and Material Product Name Operation temperature O-ring
  (White) Acetal  SACV2002B01 - 40 ° F to 180° F Buna-N (Nitrile rubber)
  (Beige) Polypropylene  SPPV2002E01MALD - 32 ° F to 160° F Peroxide Cured EPDM
  (Grey) Polypropylene  SPPV2002E01 - 32 ° F to 160° F Peroxide Cured EPDM
 (Metallochrome) Chrome brass / Stainless steel / / /

Panel Mount Dimensions:



  Panel Opening  Max Panel Thickness Min Panel Thickness
Sockets See Drawing 0.5" 0.05"
Plugs 0.5" 0.3" 0.05"

 Product Number Guide Example:



S AC V 200 2 B 01

Socket / Plug

Material

Valve

 Flow size

Body shape

O-ring

Connection size
