Quick Couplings Series (Valve)

PACV5003BW4

  • Material :

    Acetal (POM)
  • Flow :

    1/4'' Size
  • Sealing Ring :

    Buna-N (Nitrile rubber)
  • Color :

    White / Beige / grey
  • Valve Option :

    Valve
  • Valve Spring :

    316 Stainless Steel
  • Internal Valve Material :

    Acetal (POM)
This series of products refers to the lock button material being acetal. At a working pressure of 8.3 bar, it has fewer leakage points, shorter assembly time, faster installation, can prevent accidental disconnection, and no external metal leakage.

Classification:



Color and Material Product Name Operation temperature O-ring

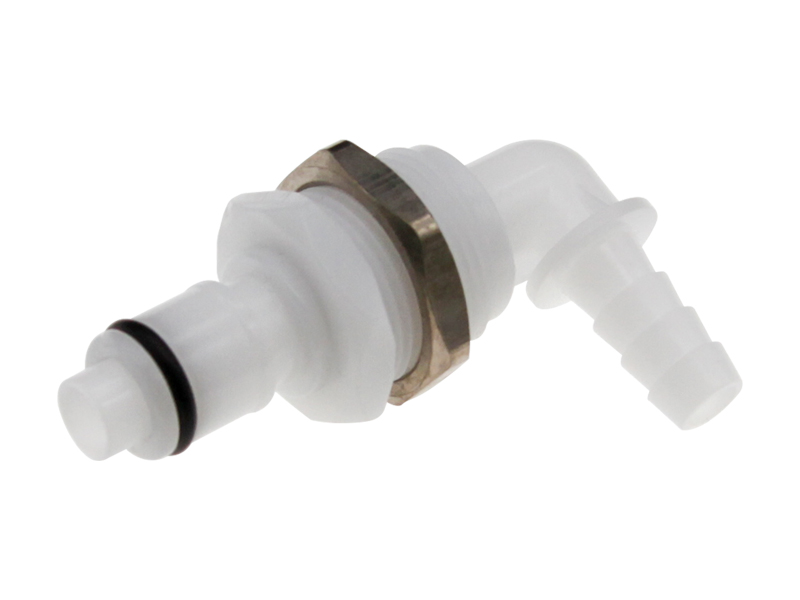

  (White) Acetal  PACV5003BW4 - 40 ° F to 180° F Buna-N (Nitrile rubber)
  (Beige) Polypropylene  PPPV5003EW4MALD - 32 ° F to 160° F Peroxide Cured EPDM

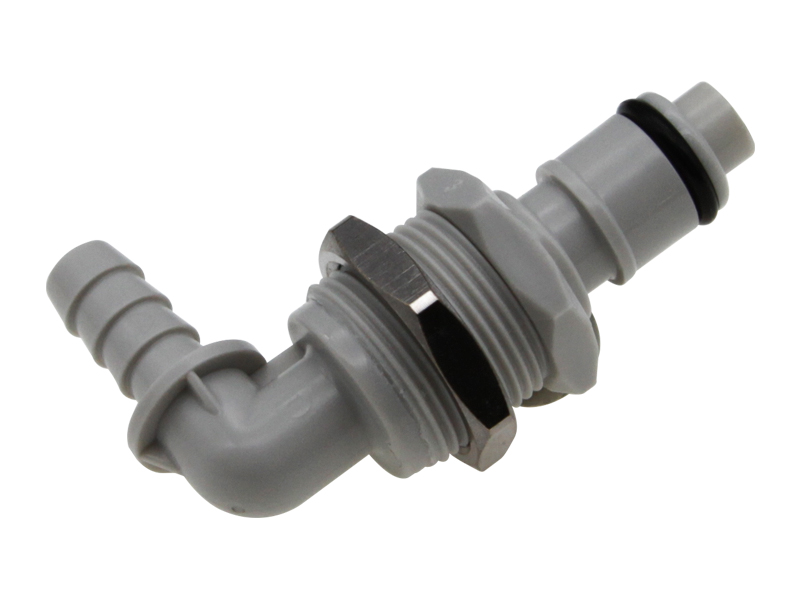

  (Grey) Polypropylene  PPPV5003EW4 - 32 ° F to 160° F
Peroxide Cured EPDM

Panel Mount Dimensions:



  Panel Opening  Max Panel Thickness Min Panel Thickness
Sockets See Drawing 0.5" 0.05"
Plugs 0.688" 0.3" 0.05"

Product Number Guide Example:



P AC V 500 3 B W4

Socket / Plug

Material

Valve

 Flow size

Body shape

O-ring

Connection size
