Quick Couplings Series (Valve)

PACV4003BW4

  • Material :

    Acetal (POM)
  • Flow :

    1/4 '' Size
  • Sealing Ring :

    Buna-N (Nitrile rubber)
  • Color :

    White / Beige /grey
  • Valve Option :

    Valve
  • Valve Spring :

    316 Stainless Steel
  • Internal Valve Material :

    Acetal (POM)
The lock button material of this series of products is stainless steel. At a working pressure of 8.3 bar, it has few leakage points, short assembly time, fast installation, reliable connection, and can be used interchangeably with the 400CB series.

Classification:



Color and Material Product Name Operation temperature O-ring
  (White) Acetal  PACV4003BW4 - 40 ° F to 180° F Buna-N (Nitrile rubber)

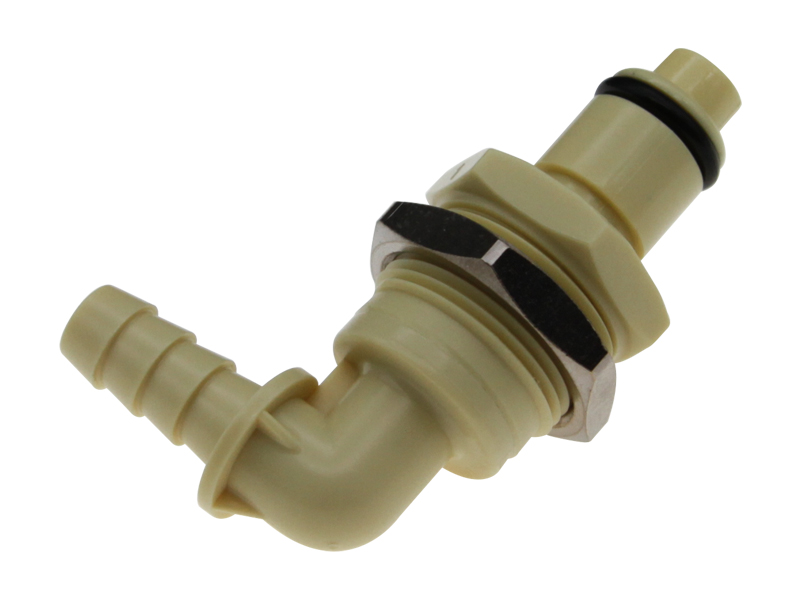

  (Beige) Polypropylene  PPPV4003EW4MALD - 32 ° F to 160° F Peroxide Cured EPDM

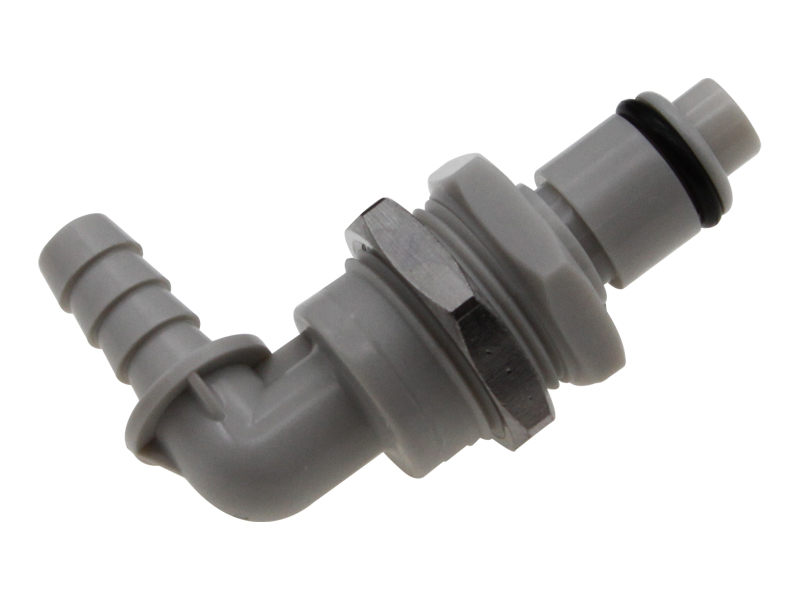

  (Grey) Polypropylene  PPPV4003EW4 - 32 ° F to 160° F Peroxide Cured EPDM
 (Metallochrome) Chrome brass / Stainless steel / / /

Panel Mount Dimensions:



  Panel Opening  Max Panel Thickness Min Panel Thickness
Sockets See Drawing 0.5" 0.05"
Plugs 0.688" 0.3" 0.05"

Product Number Guide Example:



P AC V 400 3 B W4

Socket / Plug

Material

Valve

 Flow size

Body shape

O-ring

Connection size
