Quick Couplings Series (Valve)

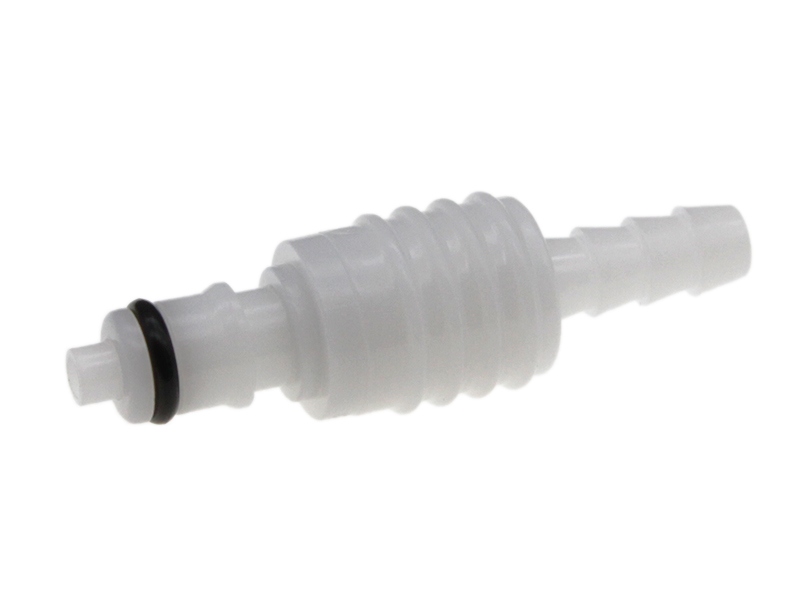

PACV3002B03

  • Material :

    Acetal (POM)
  • Flow :

    3/16 '' Size
  • Sealing Ring :

    Buna-N (Nitrile rubber)
  • Color :

    White / Beige /grey
  • Valve Option :

    Valve
  • Valve Spring :

    316 Stainless Steel
  • Internal Valve Material :

    Acetal (POM)
This series of products is made of acetal, and under a working pressure of 8.3 bar, there are few leakage points, short assembly time, fast installation, and reliable connection. It can be connected to the 300AC series sockets.

Classification:



Color and Material Product Name Operation temperature O-ring
  (White) Acetal  PACV3002B03 - 40 ° F to 180° F Buna-N (Nitrile rubber)
  (Beige) Polypropylene  PPPV3002E03MALD - 32 ° F to 160° F Peroxide Cured EPDM
  (Grey) Polypropylene  PPPV3002E03 - 32 ° F to 160° F Peroxide Cured EPDM

Panel Mount Dimensions:



  Panel Opening  Max Panel Thickness Min Panel Thickness
Sockets See Drawing 0.5" 0.05"
Plugs 0.5" 0.3" 0.05"

Product Number Guide Example:



P AC V 300 2 B 03

Socket / Plug

Material

No Valve

 Flow size

Body shape

O-ring

Connection size
