Material :
Acetal (POM)Flow :
1/4'' SizeSealing Ring :
Buna-N (Nitrile rubber)Color :
White / Beige /grey / metallochromeValve Option :
ValveValve Spring :
316 Stainless SteelInternal Valve Material :
Acetal (POM)Classification:
Color and Material | Product Name | Operation Temperature | O-ring |

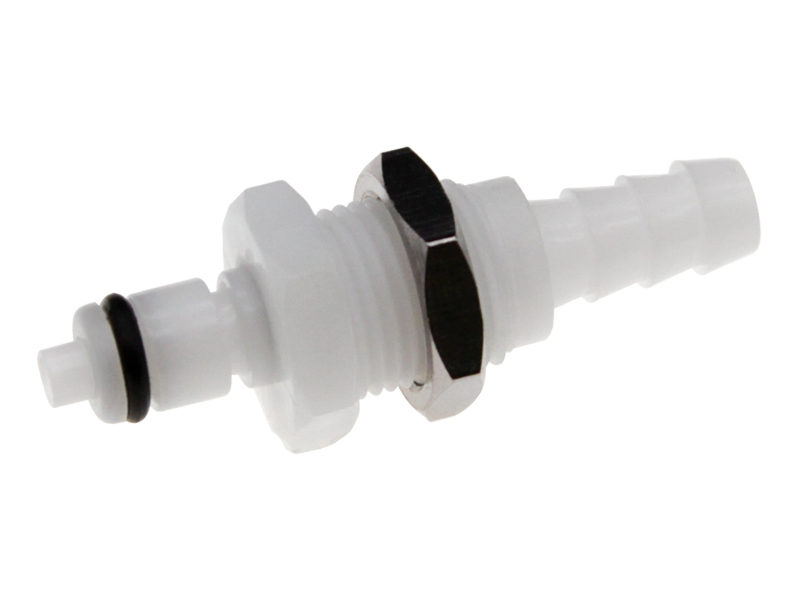

(White) Acetal | PACV2003B04 | - 40 ° F to 180° F | Buna-N (Nitrile rubber) |

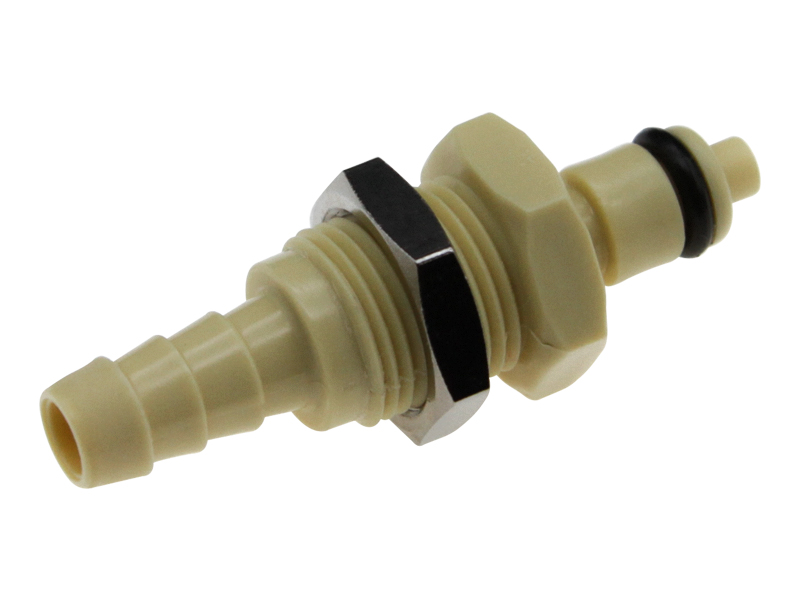

(Beige) Polypropylene | PPPV2003E04MALD | - 32 ° F to 160° F | Peroxide Cured EPDM |

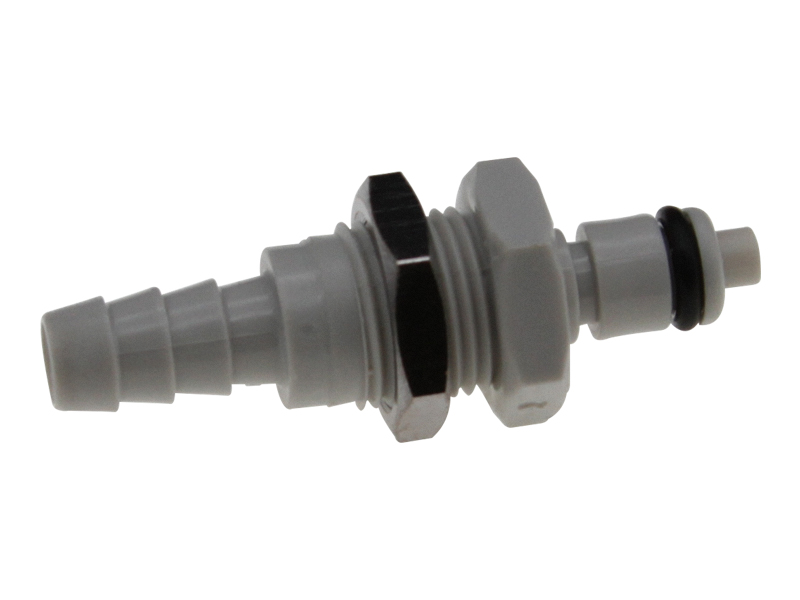

(Grey) Polypropylene | PPPV2003E04 | - 32 ° F to 160° F | Peroxide Cured EPDM |

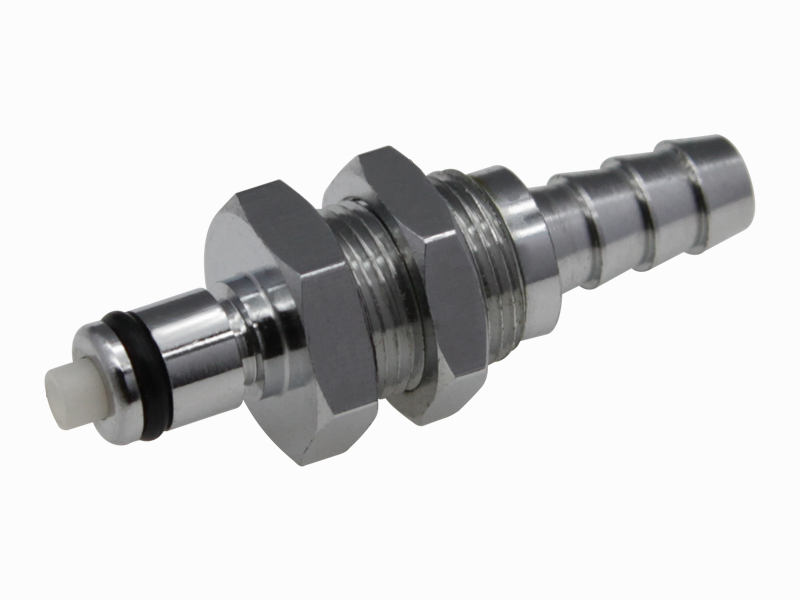

(Metallochrome) Chrome brass / Stainless steel | PCBV2003B04 / PSSV2003B04 | - 40 ° F to 180° F | Buna-N (Nitrile rubber) |
Panel Mount Dimensions:
Panel Opening | Max Panel Thickness | Min Panel Thickness | |
Sockets | See Drawing | 0.5" | 0.05" |
Plugs | 0.5" | 0.3" | 0.05" |
Product Number Guide Example:
P | AC | V | 200 | 3 | B | 04 |
Socket / Plug |
Material |
Valve |
Flow size |
Body shape |
O-ring |
Connection size |
